CONTROLLER CALIBRATION - Please consider that in variable conditions and situations, calibration should take place on each set up.

1. To prime the pump ensure valves are open on lance/poles. Turn the flow rate to 99, once the chemical feed has filled and the line has primed, turn down the flow rate to to 20-35.
2. Now that you have set the controller to a medium rate of 20-35 leave the flow open and auto-calibrate the controller to the desired flow rate.
3. If any parameters change ie the jets in the brush (fan/pencil), applicator nozzles, diameter or distance of the hose then recalibrate accordingly for the best efficiency.
4. Close the lid when in operation.
5. Finally, for a good 10 minutes and with fresh water, flush the pump and chemical lines to provide your equipment with longevity.

(Please scan the QR code on the controller for calibration prior to using). Please read below for further information

Additional Information

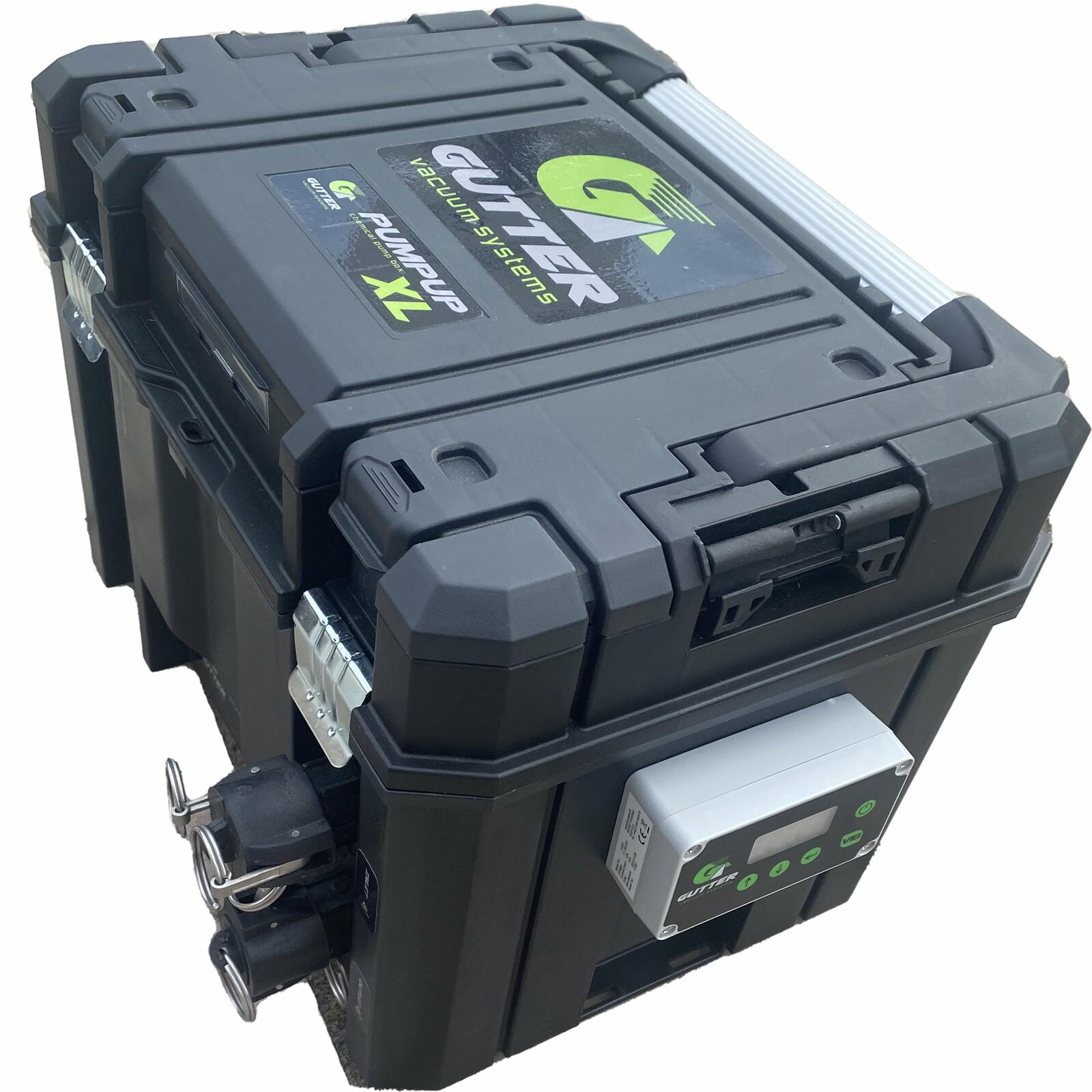

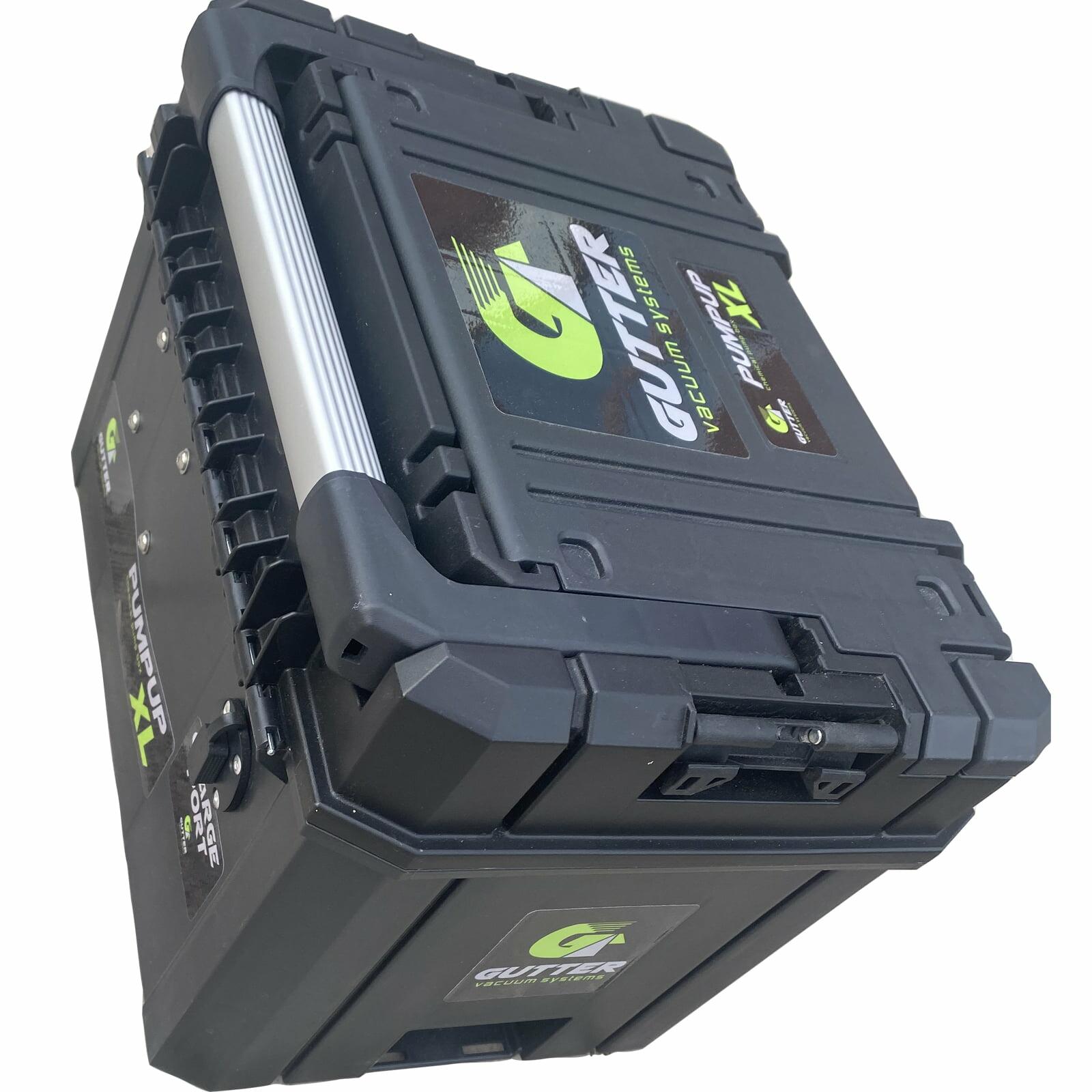

Portable heavy-duty chemical pump box for exterior cleaning specialists who are looking to apply pre-mixed required ratio biocides, soft washing sodium hypochlorite and TFR etc to exterior surfaces. Remove moss, algae, and lichen from hard surfaces, roofs, walls and render.

The box which is set up to use includes the chemical inlet hose, charger whether you choose to have the 50Ah battery included or not and also features a storage tray for those applicators, fan jets, full cones and other required spray nozzles and accessories.

Specific featuresV16 Controller (Please scan the QR code on the controller for calibration before using)
 Allows you to vary the pump flow rate from 0-99%. Automatically pauses the flow when a dead-end (eg from a pole valve) is detected and restarts it when the dead-end has been removed. Indicates when the pressure switch has operated, and also the battery condition (voltage). Auto calibration. IP65 box. Supplied with chemical inlet hose, connect your hose to the outlet.

Pump

• 12v
• 5.6 Lpm Pump
• 100 Psi/6.8 Bar
• Self-priming
• Run dry capable
• Viton seal pump

Battery

• 12v, 50Ah
• Wet Cell Flooded Lead Acid Battery with Advance Calcium+ Alloy Technology
• Please charge the battery fully before the first use

Charger

• 5Ah
• 6-12v
• SAE Crocodile connectors and O ring terminal crimps

Dimensions and Weight Specifications

• Box measures 47cm (W) x 38cm (D) x 31cm (H)
• Without a battery 6kg
• With a battery 14kg

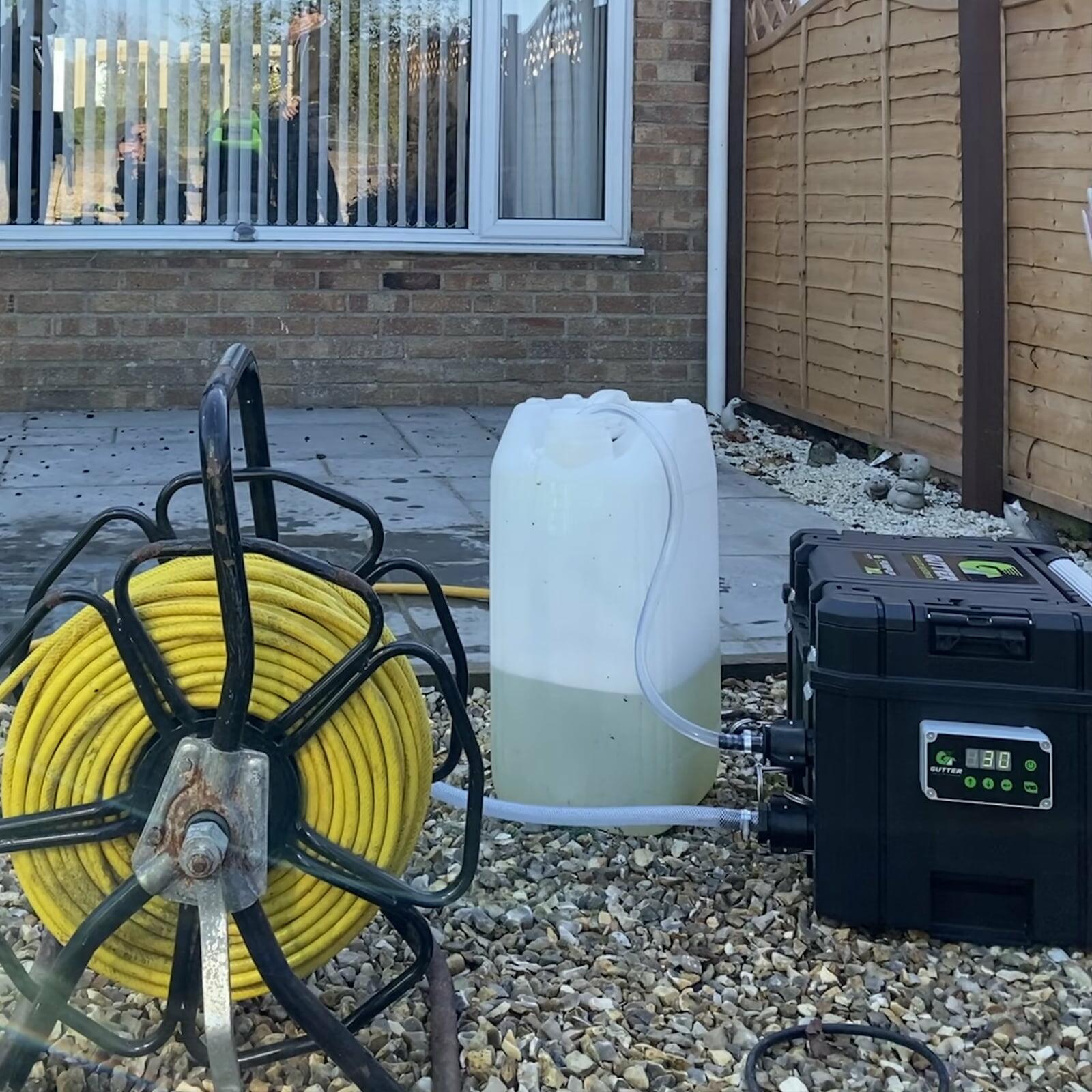

• Inlet top
• Outlet Bottom
• Charge port on the rear.
• Premix
