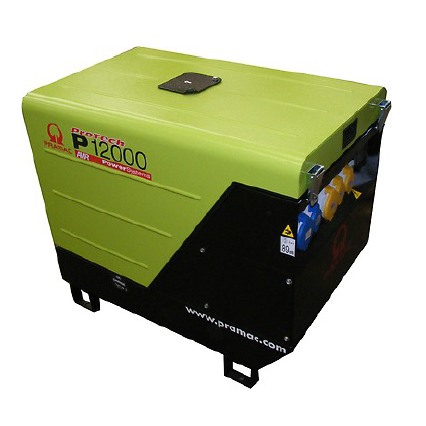

The Pramac P12000 AVR Generator is a low noise petrol set for serious work and residential backup. With 11.9 kVA standby output and 10.0 kVA continuous power at 230/115 V, it can support site cabins, small workshops or a well-planned home backup system. The silenced canopy and improved exhaust keep sound levels down to around 61 dB(A) at 7 metres, which is suitable for use in residential areas and outside normal working hours.

At its heart is a Honda GX630 Stage V petrol engine running at 3000 rpm. It uses electric start and a 24 litre long run tank, giving about 5.9 hours of runtime at 75 percent load and around 4.4 hours at full load. Automatic voltage regulation helps keep the output stable as loads are switched on and off, which protects sensitive equipment and reduces nuisance trips. The P12000 is built with first-class components and a robust canopied frame for intensive professional use.

The control panel includes a selector switch, full instrumentation and clear layout. You get a complete socket mix, with two 115 V 16 A outlets, one 115 V 32 A outlet, one 230 V 16 A outlet and one 230 V 32 A outlet, so you can feed both 115 V site tools and 230 V circuits. The set is also available in versions prewired for remote control and connection to AMF or remote start stop systems, and a wheel kit can be added where the generator needs to move between jobs.

Key features

• Model: Pramac P12000 AVR petrol generator.
• Use: Residential backup and intensive professional applications.
• Standby power LTP: 11.9 kVA, 10.7 kW.
• Continuous power COP: 10.0 kVA, 9.1 kW.
• Voltage: 230/115 V, 50 Hz.
• Phase: Single phase.
• Power factor: 0.9.
• Engine: Honda GX630, 4-stroke, air-cooled, Stage V.
• Starting system: Electric start.
• Fuel: Petrol (gasoline).
• Oil capacity: 1.9 L.
• Voltage regulation system: AVR (automatic voltage regulation).
• Alternator type: Brushes, class H, IP23, 2 pole.
• Silenced canopy for lower noise in residential areas.

Control panel and sockets

• Selector switch: OFF, ON, START (on CONN versions).
• Digital display with voltmeter, frequency meter and hour meter on most UK specs.
• Protections include thermal protection and oil guard, with optional differential and isometer protection on some variants.
• Sockets:
• 2 x 2P+T CEE 115 V 16 A IP44.
• 1 x 2P+T CEE 115 V 32 A IP44.
• 1 x 2P+T CEE 230 V 16 A IP44.
• 1 x 2P+T CEE 230 V 32 A IP44.

Key specifications

• Frequency: 50 Hz.
• Voltage: 230/115 V.
• Phase: 1 (single phase).
• Standby power LTP: 11.9 kVA / 10.7 kW.
• Continuous power COP: 10.0 kVA / 9.1 kW.
• Engine speed: 3000 rpm.
• Fuel tank capacity: 24 L.
• Fuel consumption at 75% load: about 4.07 L/h.
• Fuel consumption at 100% load: about 5.43 L/h.
• Runtime at 75% load: about 5.9 hours.
• Runtime at 100% load: about 4.4 hours.
• Guaranteed noise level (LWA): 89 dB(A).
• Noise pressure level at 7 m: about 61 dB(A).
• Dimensions (L x W x H): 990 x 602 x 826 mm.

All ratings are for guidance. For critical runtime planning, lifting limits or shipping bands, please confirm final figures against the latest Pramac datasheet or your supplier's documentation.
