Add To Your WishlistHonda GX390 Power Washer Skid Frame
Add To Your WishlistHonda GX390 Power Washer Skid Frame
In stock: 10
Sorry! We're out of stock
- Pressure: 200bar 3000psi
- Flow: 21 LPM
- Engine: Honda GX390
- Pump: Comet
Sorry we're out of stock!
We can let you know when it's available again, just enter your email address below.
Click here to recommend this product to a friend

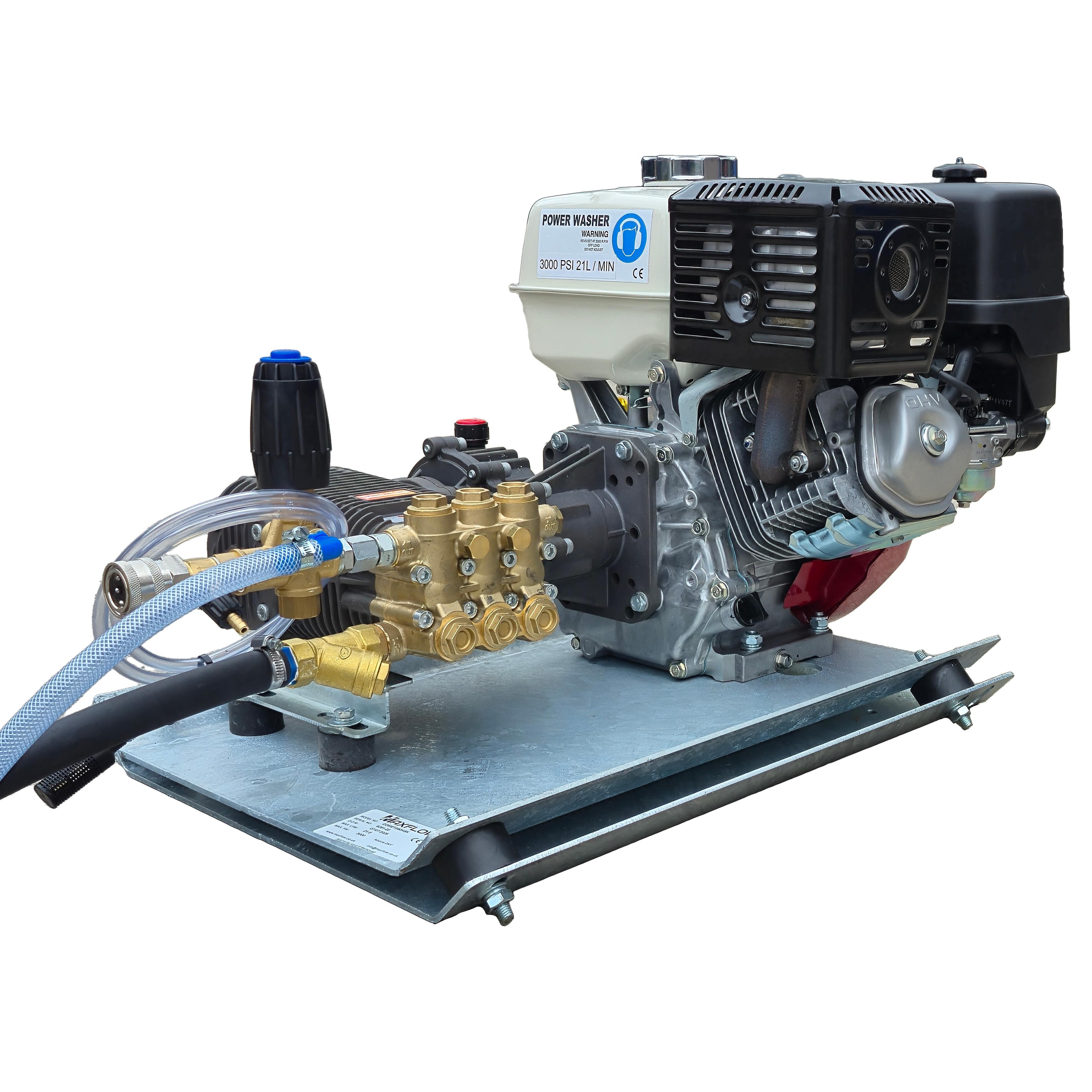

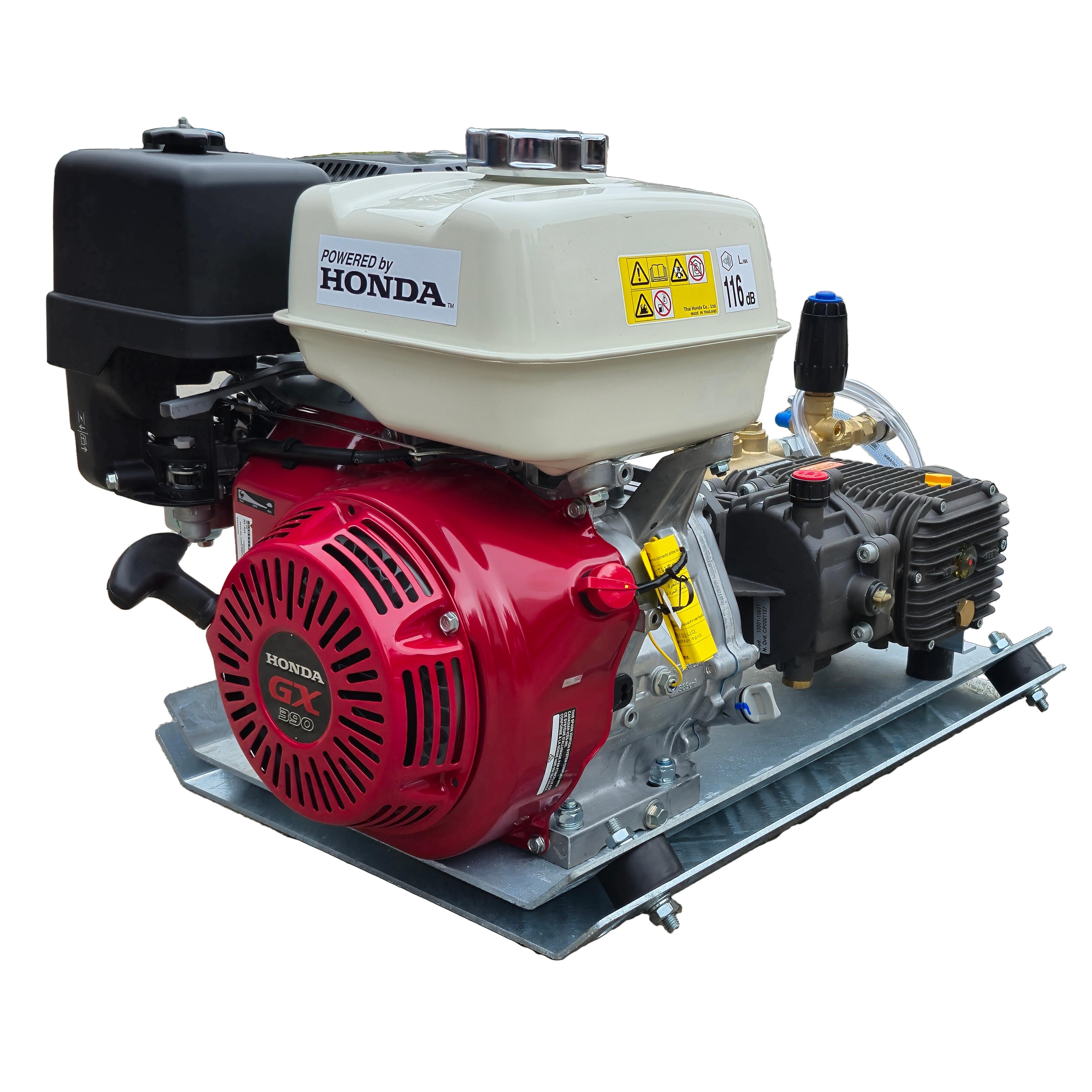

Honda GX390 Power Washer Skid Frame
- Details & Features
- Industrial cold water pressure washer with Honda GX390 4-stroke petrol engine and Comet brass head pump.
- Delivers 21 litres per minute at 200 bar (3000 PSI) for fast removal of heavy dirt, moss and traffic film.
- Gearbox-driven pump for long service life at lower pump speed, suited to all-day regular use.
- Supplied with a 10 metre twin wire Flexepulse hose, a 1200 mm lance and a Maxflow professional trigger gun with quick release.
- Chemical pick up hose with filter and adjustable pressure nozzle for easy detergent application.
- Rubber-mounted skid frame ready to bolt into vans, trailers or static wash bays.
- Built to order with a typical lead time of around 1 to 2 weeks, subject to the current factory schedule.
- Approximate machine weight 65 kg, estimated shipping weight around 80 kg on a pallet.
The Maxflow Industrial Pressure Washer on a skid frame is built around the proven Honda GX390 petrol engine and a premium Italian Comet pump. It delivers 21 litres per minute at 200 bar, which gives serious cleaning power for contractors, yard work, agricultural jobs and fleet washing. The combination of high flow and strong pressure means you can clear heavy soiling quickly while still having enough volume to feed larger flat surface cleaners.
A reduction gearbox sits between the engine and the Comet brass head pump. This allows the pump to run at a lower speed while still giving full pressure and flow, which helps reliability on long shifts and reduces wear. The unit is supplied with a chemical pick-up hose and filter, plus an adjustable pressure nozzle for applying detergents through the lance when needed. A 10 metre twin wire Flexepulse hose, 1200 mm lance and Maxflow professional trigger gun with quick release fittings are included, so you can connect accessories such as foam bottles or turbo lances without tools.
The complete assembly sits on a rubber-mounted skid frame that is ready to bolt down into a van, trailer or static wash bay. The compact footprint helps with layout inside work vehicles and makes it easier to design a tidy installation alongside tanks and reels. Maxflow machines are built to order, so you can plan around a typical lead time of one to two weeks and know you are getting a fresh unit that has been assembled and tested for industrial duty.
Features
- Honda GX390 4-stroke petrol engine.
- Premium Italian brass head Comet pump.
- Gearbox-driven pump for long life and smoother running.
- 21 litres per minute at 200 bar (3000 PSI).
- Chemical pick-up hose complete with filter.
- Adjustable pressure nozzle for chemical application.
- 10 metre twin wire Flexepulse hose included.
- 1200 mm lance included.
- Maxflow professional trigger gun with quick-release connections.
- Rubber-mounted skid frame for reduced vibration and easy installation.
- Ideal for van, trailer or static skid-mounted systems.
Specifications
- Engine: Honda GX390 petrol.
- Pump: Comet brass head, gearbox driven.
- Max flow: 21 litres per minute.
- Max pressure: 200 bar 3000 PSI
- Type: Cold water industrial pressure washer.
- Frame style: Rubber-mounted skid frame.
- Included hose: 10 metre twin wire high-pressure hose.
- Included lance: 1200 mm lance.
- Included gun: Maxflow professional trigger gun with quick release.
- Chemical system: Pick up a hose with a filter and an adjustable pressure nozzle.
