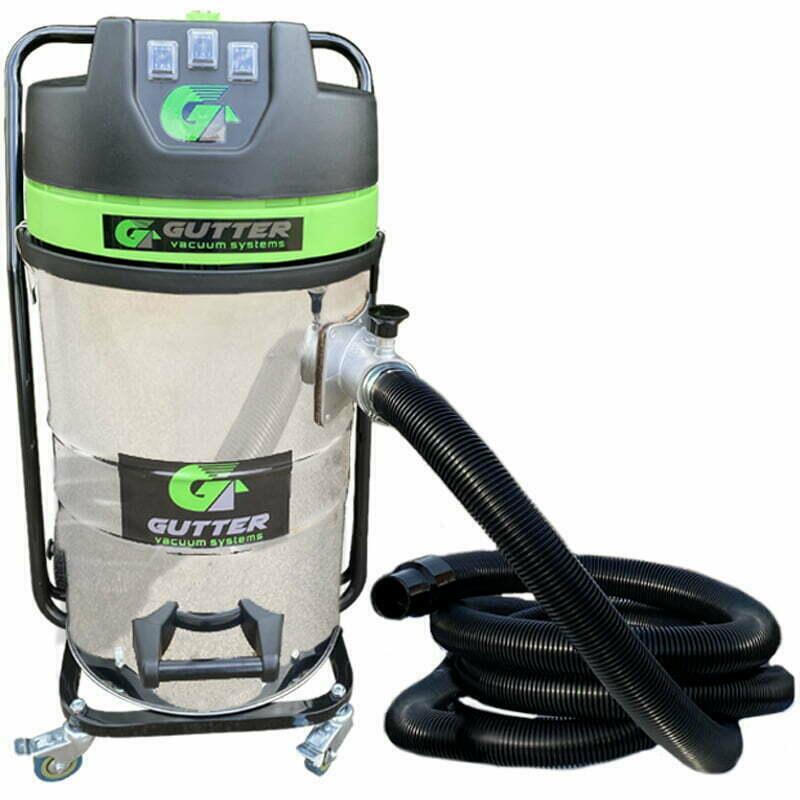

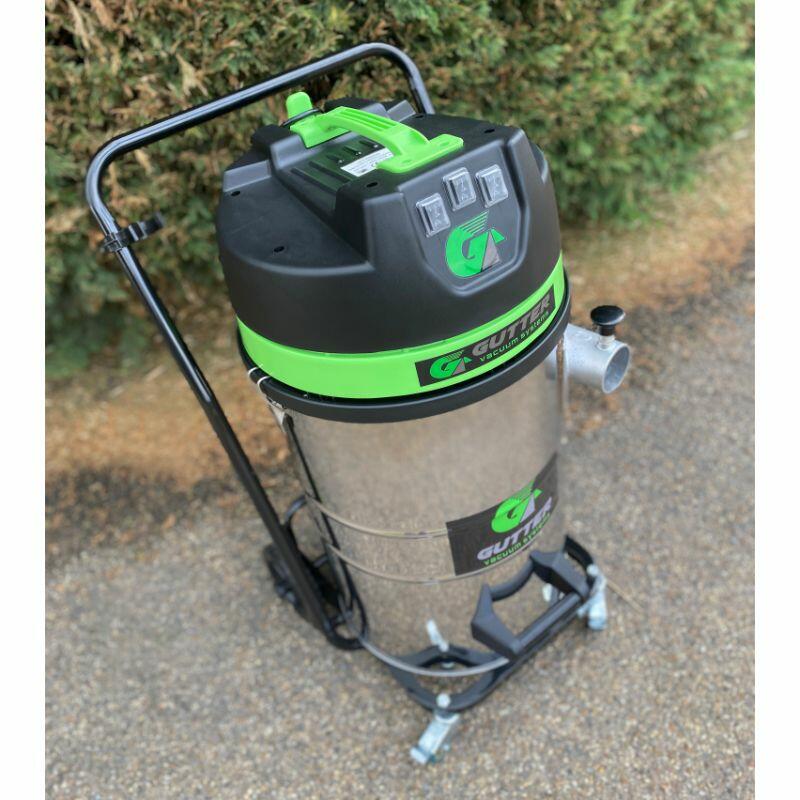

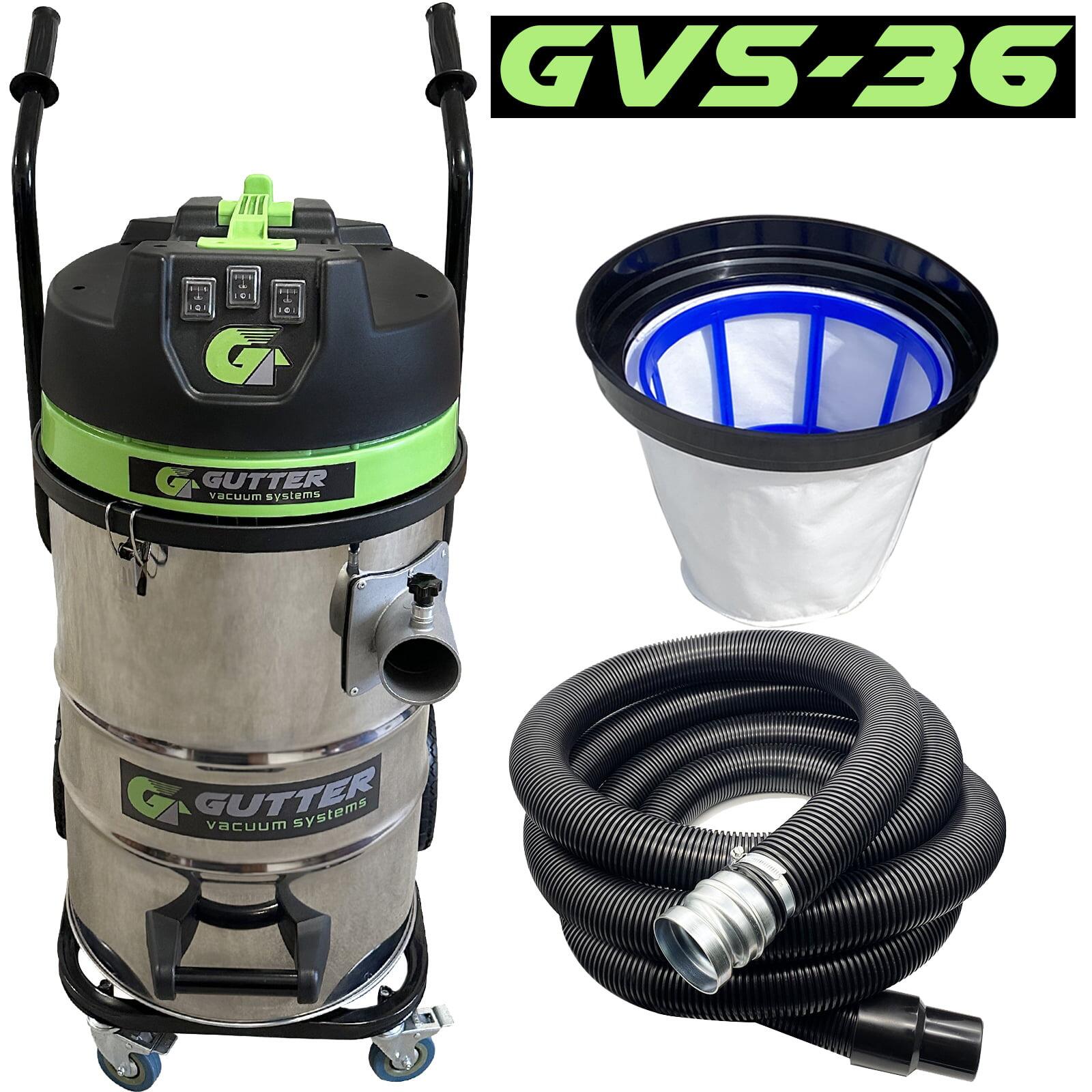

The GVS 3600 Gutter Vacuum System is a powerful, cost-effective solution designed for professional gutter cleaning. With no plastic inlets or blockage-causing diameter reductions, this system offers exceptional suction performance, making it ideal for heavy-duty tasks. The GVS 3600 is mounted on a full steel, tilting trolley for easy emptying and features durable construction to withstand demanding jobs.

Key Features:

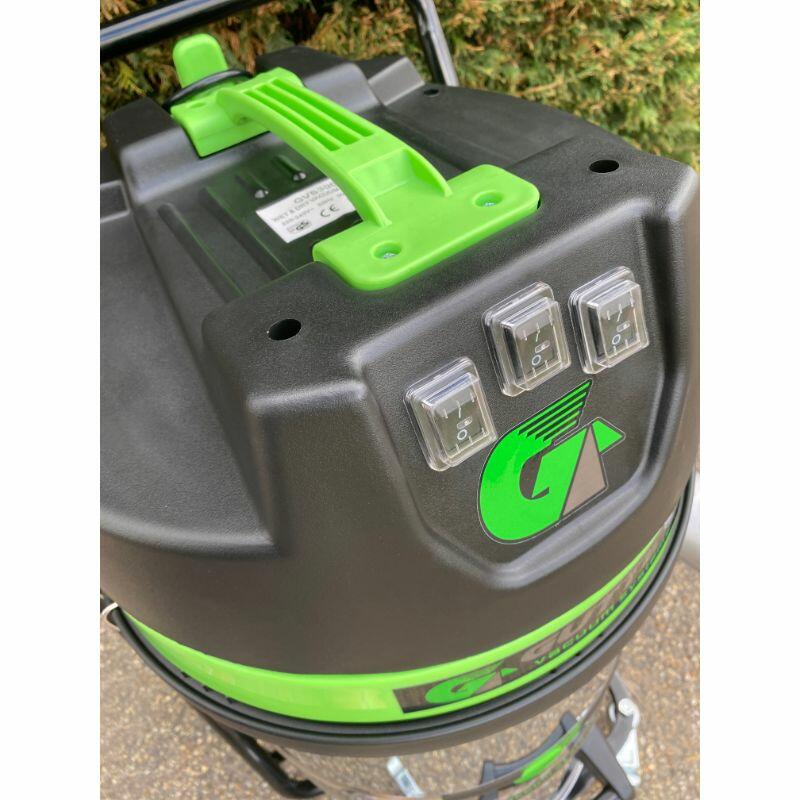

• Powerful 3600w Triple Motor: Three individual 1200w motors provide a combined 10,000 Lpm airflow and 100" water lift, delivering superior suction and cleaning power.

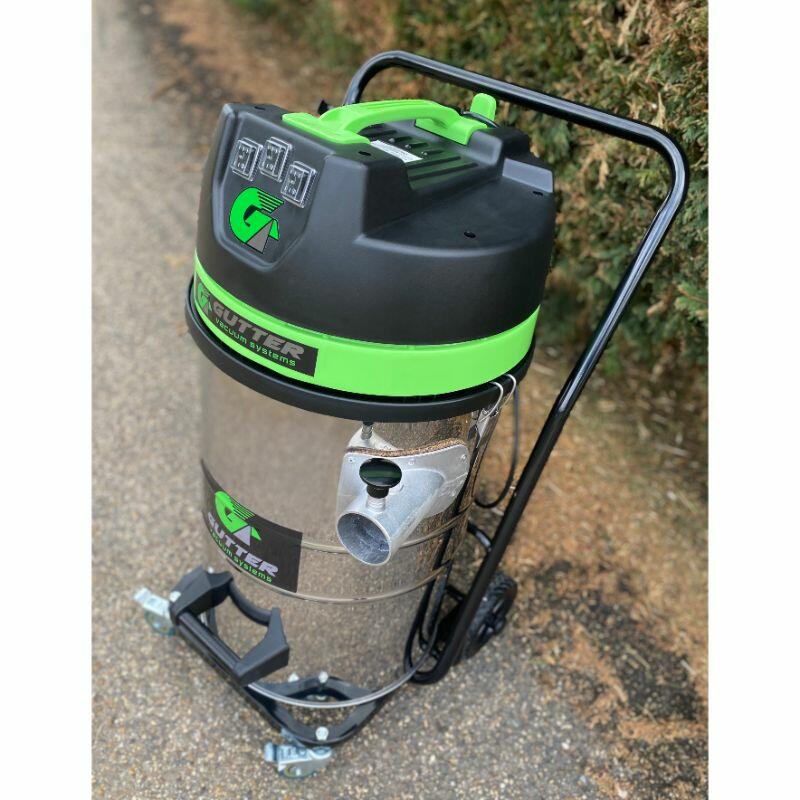

• Heavy-Duty Steel Trolley:
  • Tilting Tipping Drum: Easily tilt the 80L drum for fast, hassle-free emptying.
  • Front Locking Castors: Ensures stability and easy positioning.

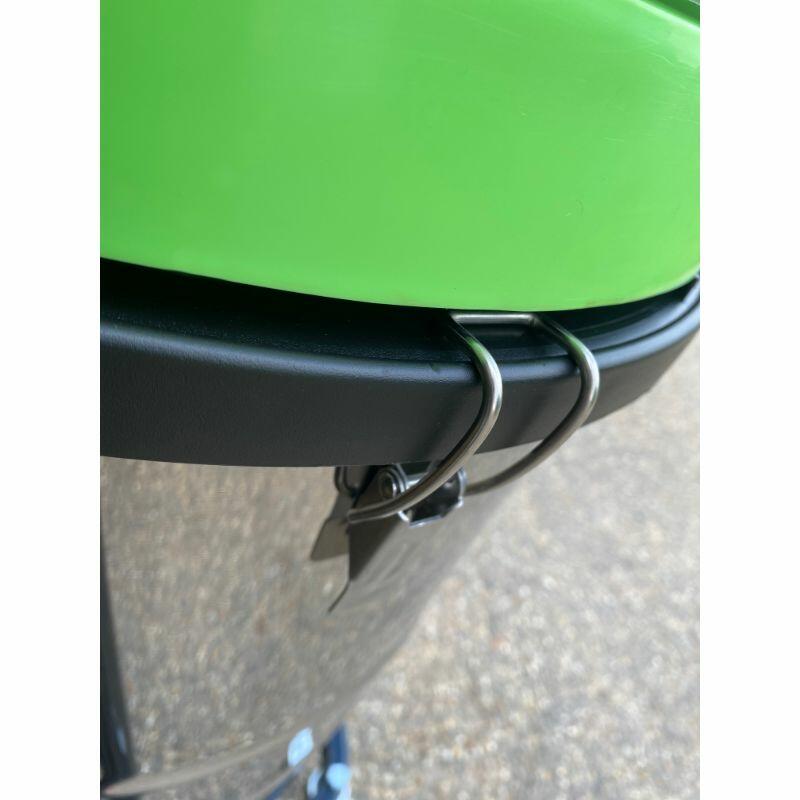

  • Positional Unlocking Clips: For secure drum placement and easy movement.
  • Frame Options:
    • Original One Handle Frame: Compact size (58cm x 58cm x 99cm) with rear plastic wheels and a low point tipping bar, ideal for smaller spaces.
    • Two-Handle All-Terrain Frame: Larger frame (53cm x 66cm x 112cm) with puncture-proof wheels and mid-point tipping bar for easy transport over uneven ground.

Filtration System:

• Removable, Washable Cloth Filter:
  • Dry Use: Protects the motor head from fine dust and debris during dry vacuuming. Ensure the cloth filter is completely dry before use.
  • Wet Use: For gutters filled with wet sludge, slurry, or vegetation, rinse the filter on-site to maintain suction performance. Always ensure the float valve is free of muck when the filter is removed.
  • Easy Cleaning: Clean the filter with a low-pressure jet wash or stiff brush when dry. Air dry thoroughly before reuse.

Specifications:

• Voltage: 220-240V
• Motor Power: 3 x 1200w motors (3600w total)
• Water Lift: 100” H20
• Airflow: 10,000 Lpm
• Drum Capacity: 80L
• Noise Level: 76 dB
• Cyclonic Inlet Diameter: 72mm
• Frame Dimensions:
  • Original Frame: 58cm (W) x 58cm (W) x 99cm (H)
  • Two Handle Frame: 53cm (W) x 66cm (D) x 112cm (H)
• Weight: 25kg
• Power Cable Length: 8m
• IP44 Protection: Dust and water-resistant casing.
• Hose: Supplied with a 5m length of 51mm diameter universal hose and a 51mm hose cuff.

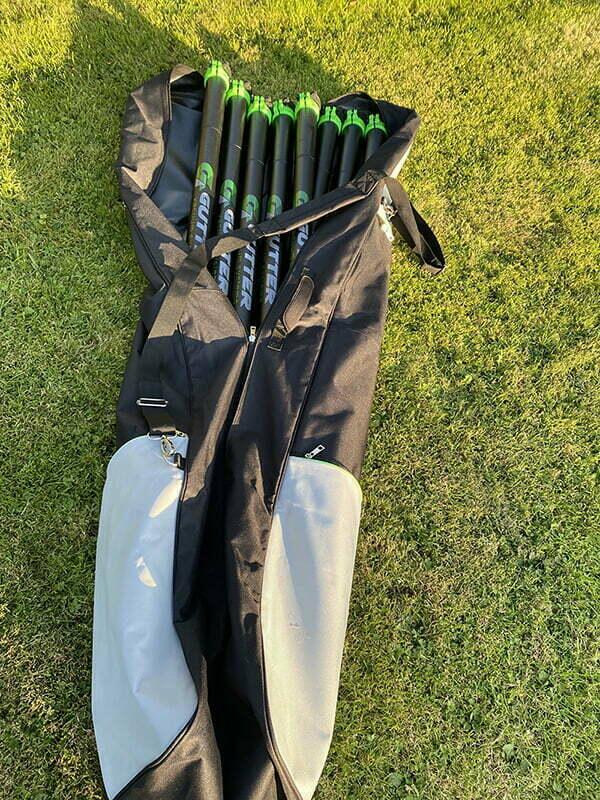

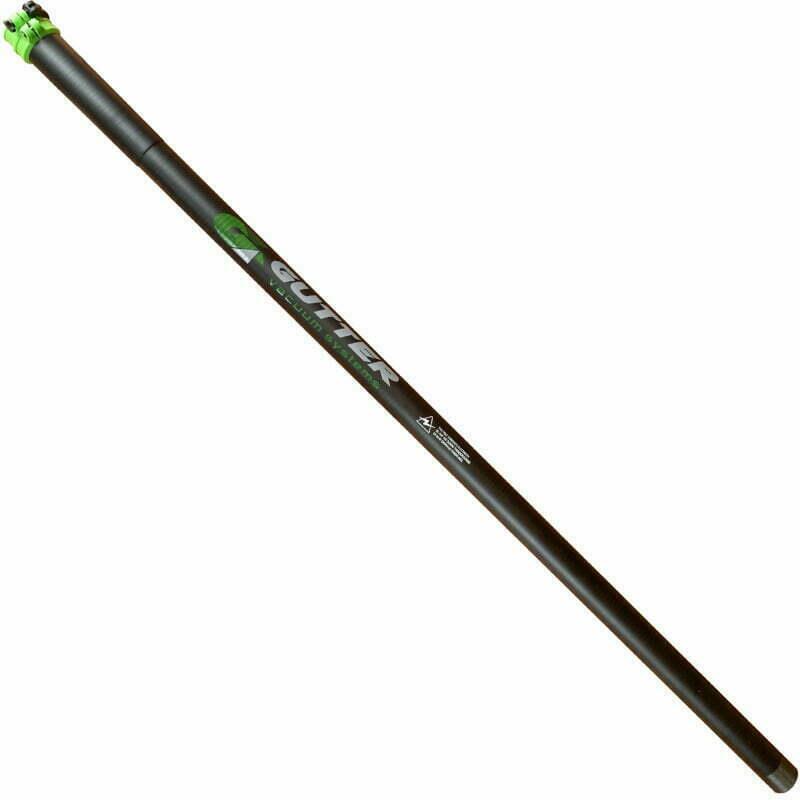

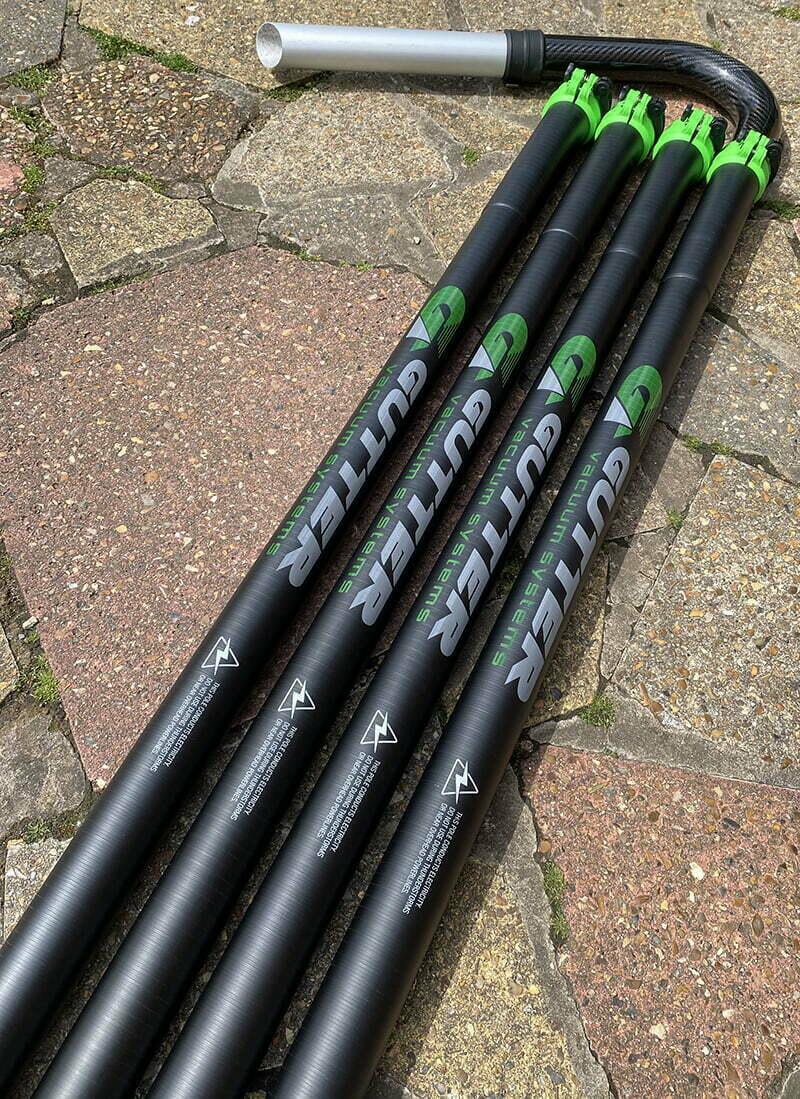

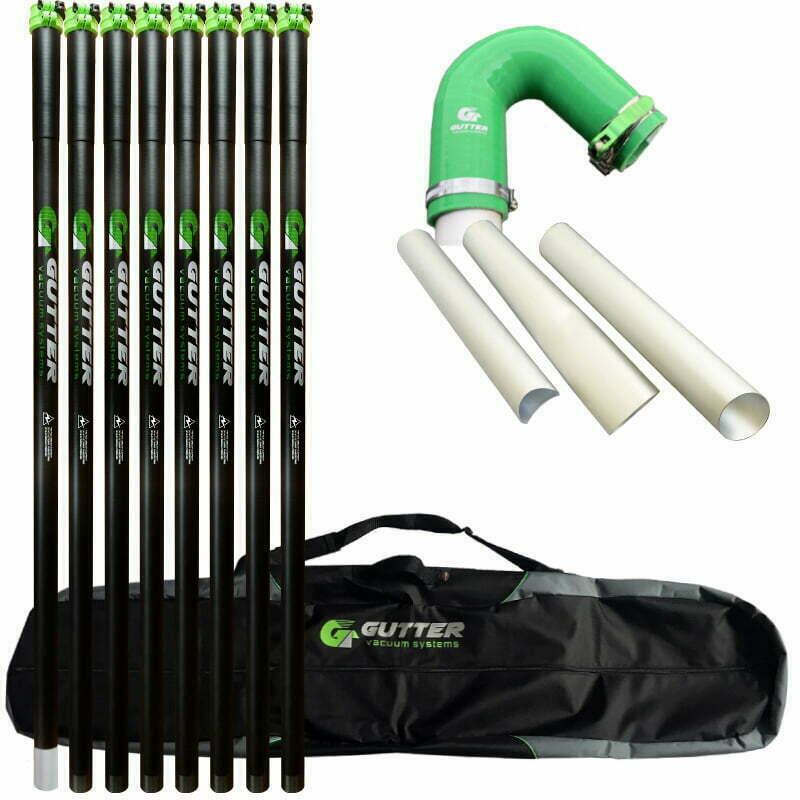

Clamped Carbon Fibre Pole Kit:

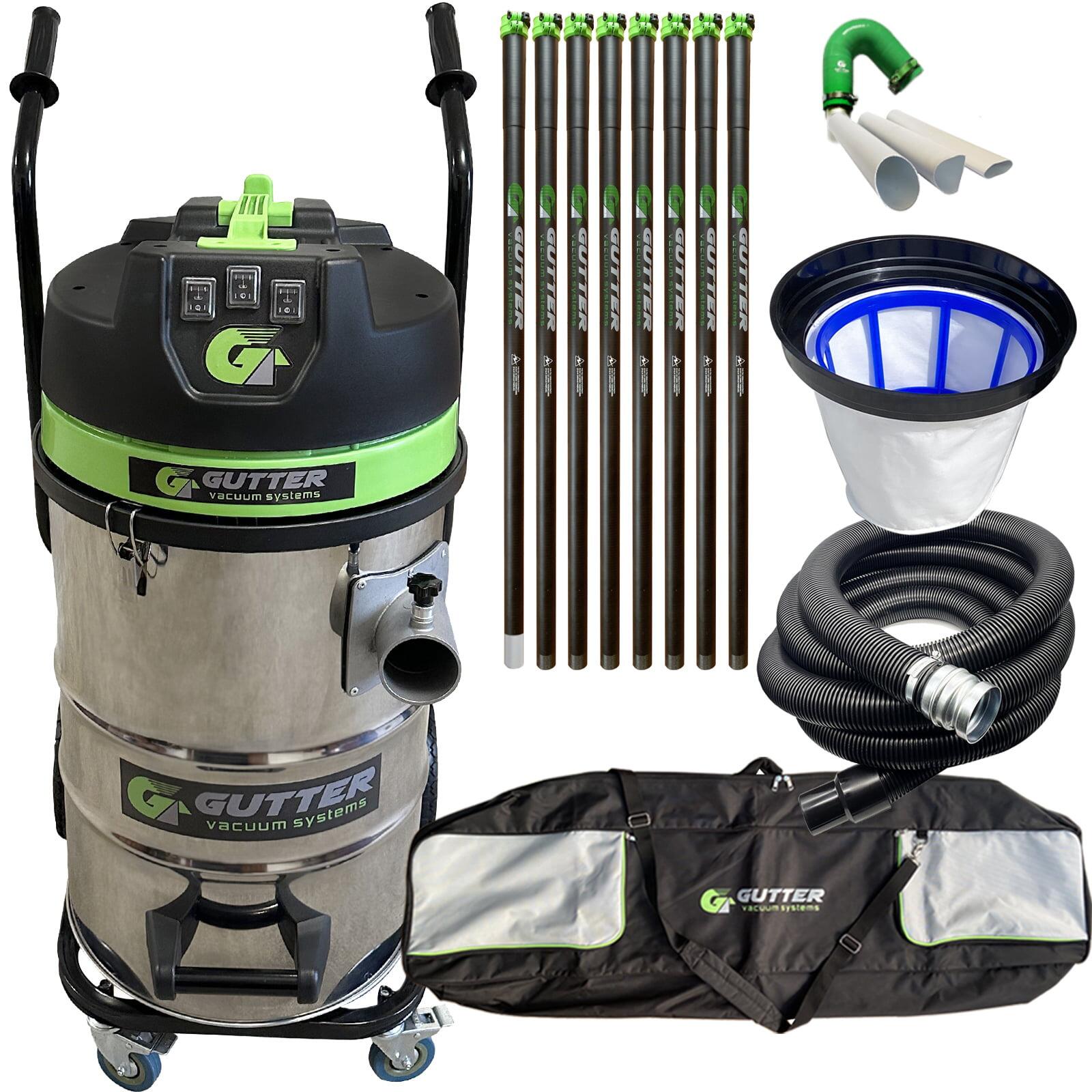

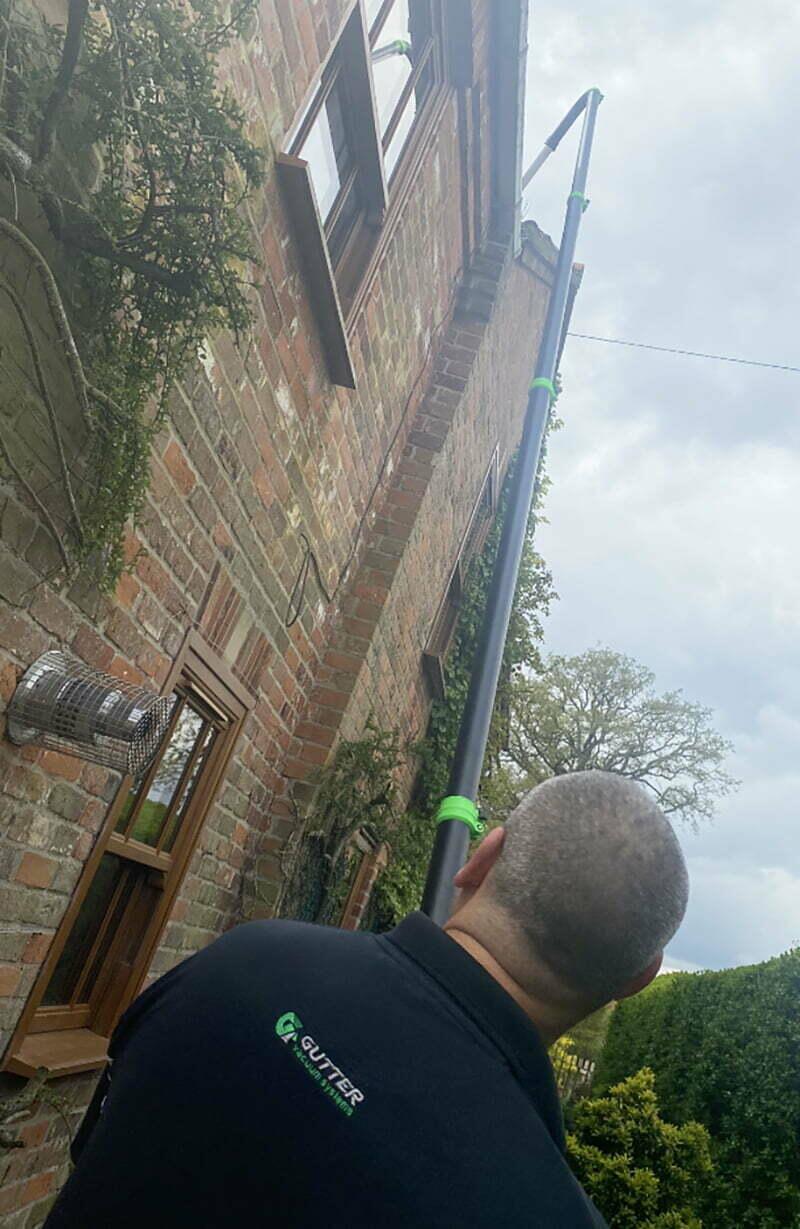

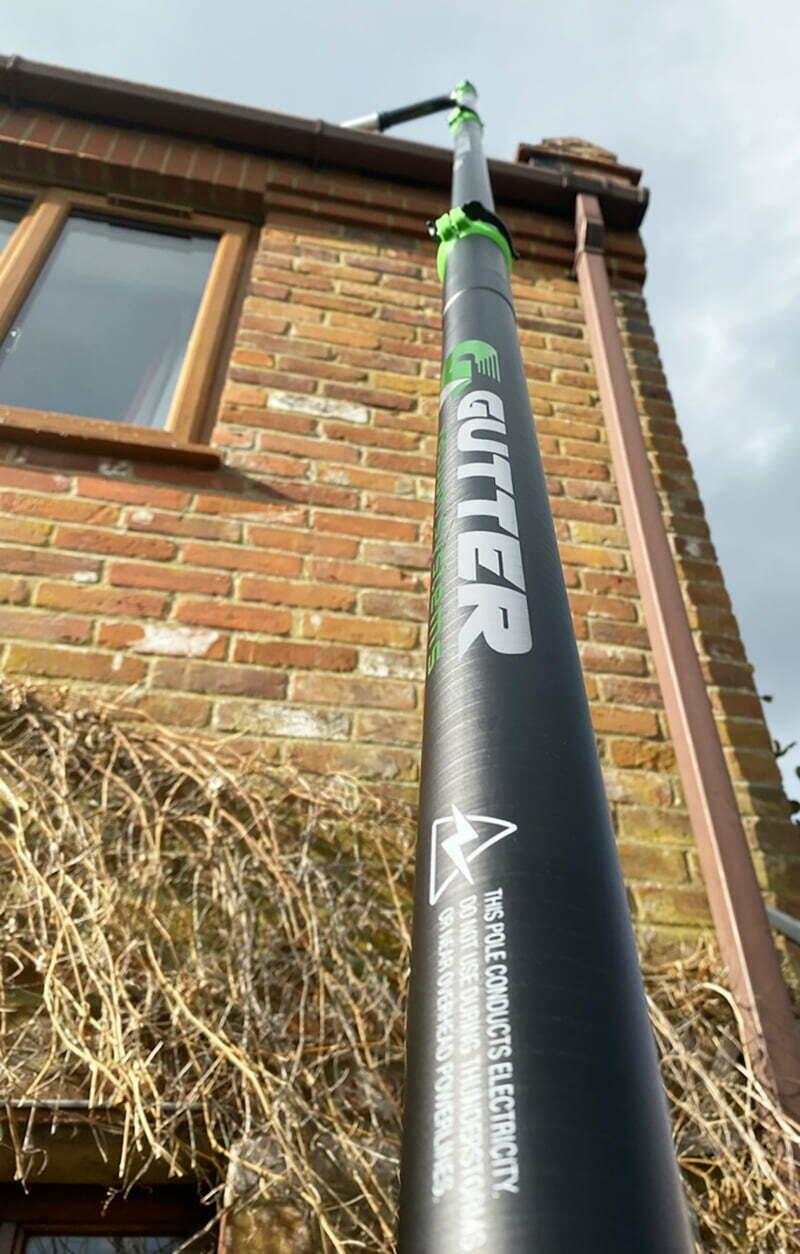

The GVS 3600 package includes our clamped carbon fibre pole kit, designed to reach heights from 20ft to 40ft. These poles have been extensively field tested and engineered for heavy-duty gutter cleaning.

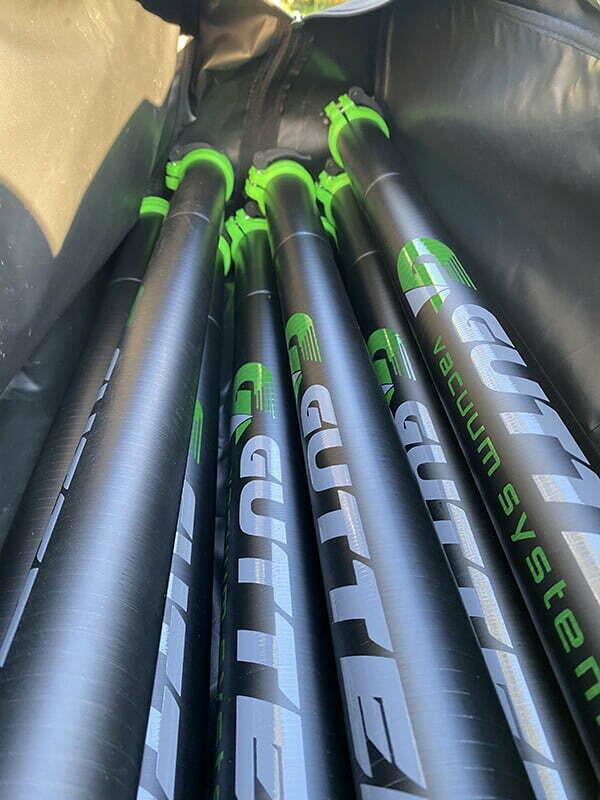

• 100% Carbon Fibre Poles: Each 1.5m pole weighs just 430g, providing excellent strength while remaining lightweight.
  • Customizable Height: Reach up to 40ft depending on the number of poles used.
  • Quick Release Clamp Mechanism: Allows for fast and secure pole assembly and disassembly.
  • Reinforced Ring and Internal Stop Barrier: Prevents over-pushing of poles during assembly.
  • Time-Saving Interlock System: For efficient setup on the job.

Flexi Neck and Nozzles:

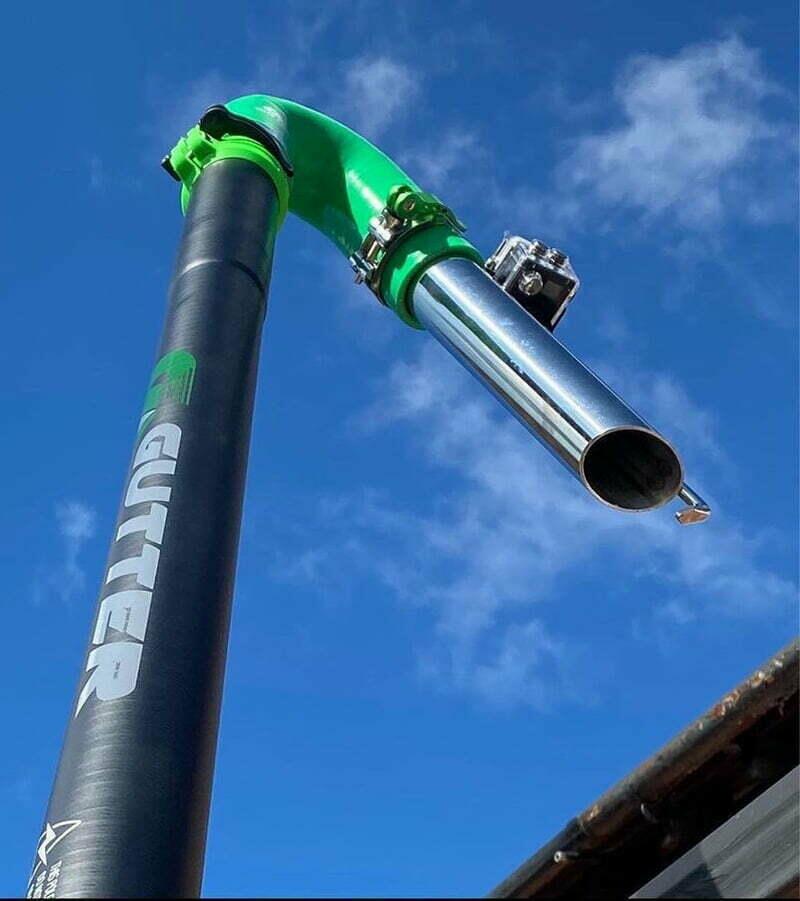

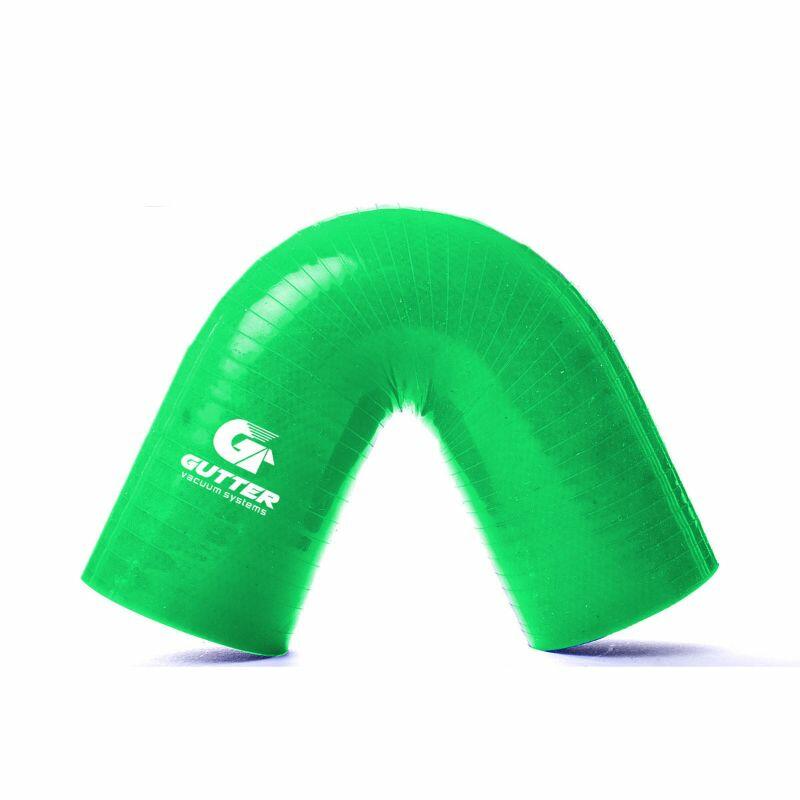

• 135˚ Silicone Flexi Neck: Offers enhanced flexibility for accessing hard-to-reach gutters without the need for additional attachments.
• Nozzles Included:

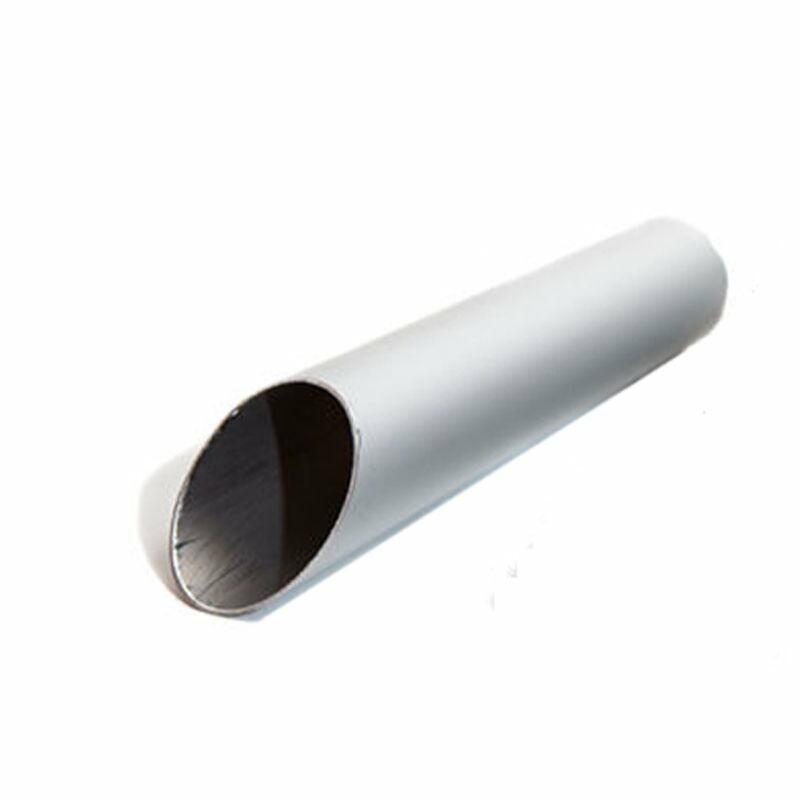

  1. Everyday Dirt Breaker: Standard nozzle for general debris agitation.

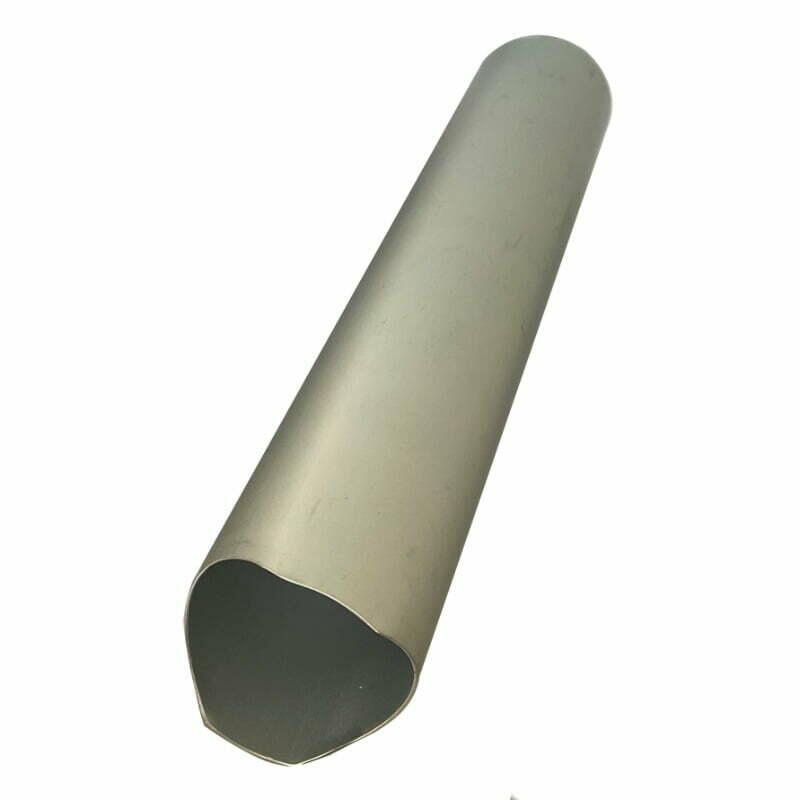

  2. GVS Gulper: Designed for optimal air circulation and to prevent debris from sticking to the gutter.

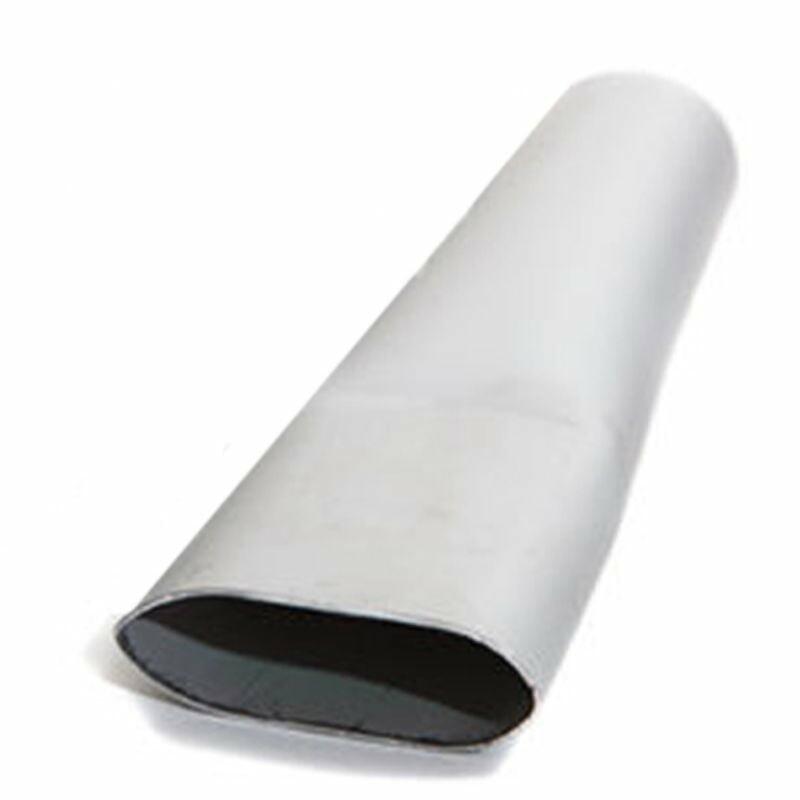

  3. Crevice Nozzle: Ideal for accessing narrow gutters restricted by overhanging tiles.

Additional Features:

• Generator Compatibility: For locations without electricity, the GVS 3600 can be powered by a generator with a minimum capacity of 5.5kva.
• Easy Maintenance: Regular cleaning of the filter and hoses will ensure your system remains in top condition. Make sure the cloth filter is fully dry before use in dry environments.

Specifications Recap:

• 3600w Triple Motor System
• 10,000 Lpm Airflow
• 100” Water Lift
• 80L Drum Capacity
• 76 dB Noise Level
• 51mm Diameter Hose (5m Length)
• Washable Cloth Filter
• IP44 Protection
• Two Frame Options for Trolley

Whether you're upgrading your equipment, adding an extra revenue stream to your business, or looking for a comprehensive gutter cleaning solution, the GVS 3600 offers everything you need. It provides exceptional power, flexibility, and ease of use, making it a valuable investment for your business. Increase your efficiency and safety while delivering excellent results with the GVS 3600.

Consider pairing your GVS 3600 with a generator and extension leads for the ultimate gutter cleaning setup.
